Type | Off Gird |
Max.Power | 3000W |
Output Voltage | EU And US Standard |
Certificate | TUV, ISO, CE |
Lead Time | 10 Days |
Payment | T/T, L/C,Western Union |
Warranty | 25 Years |

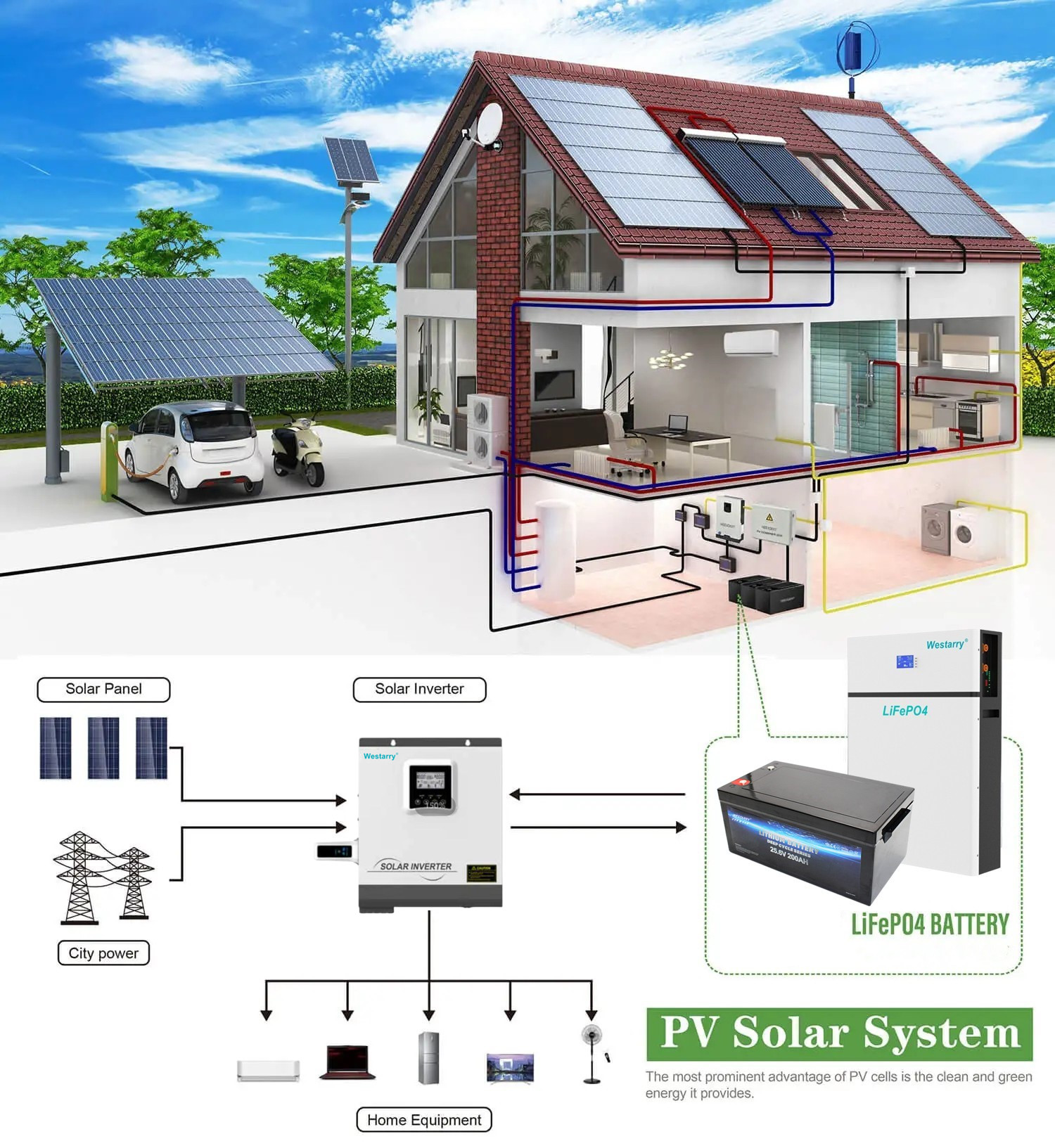

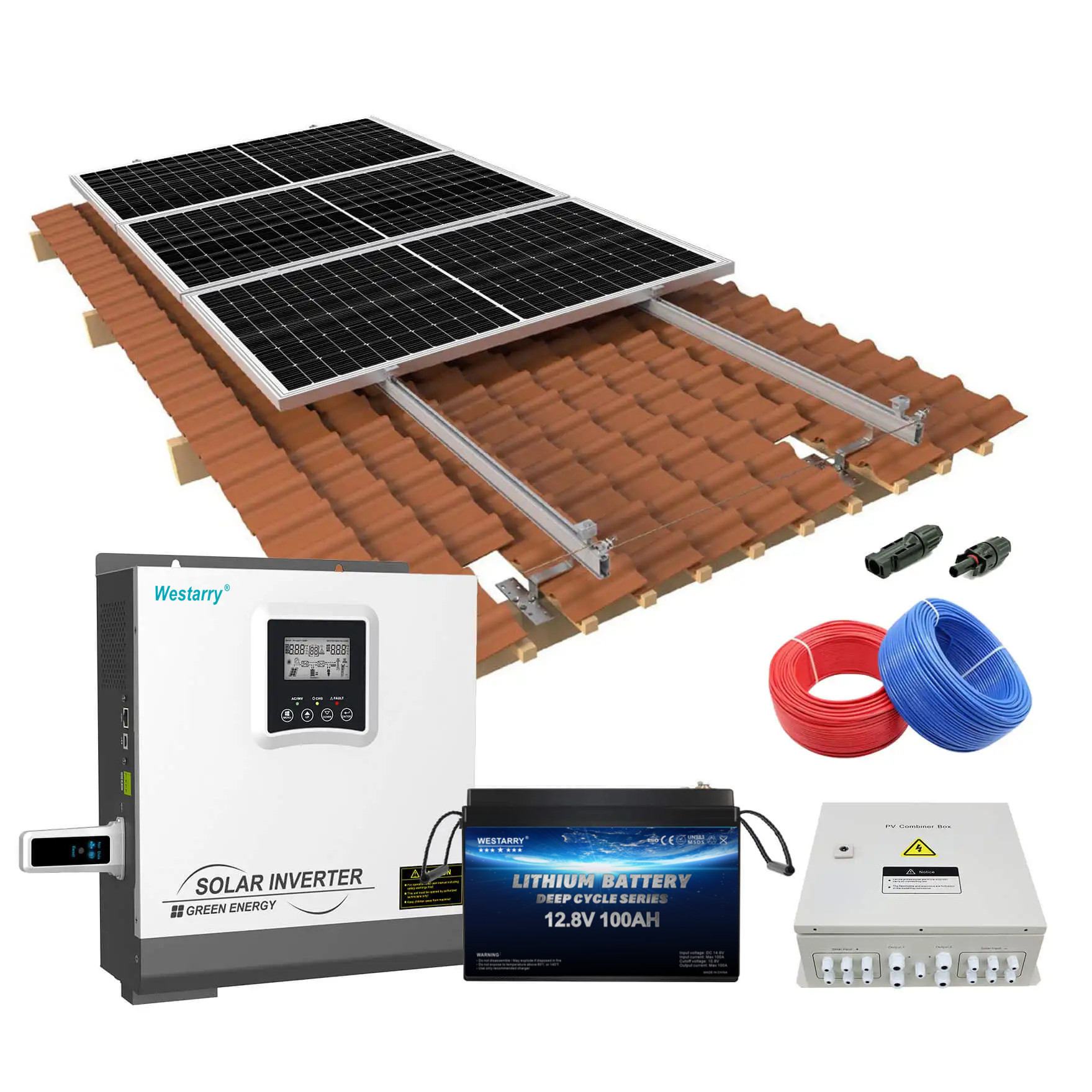

3KW OFF-GRID SOLAR SYSTEM

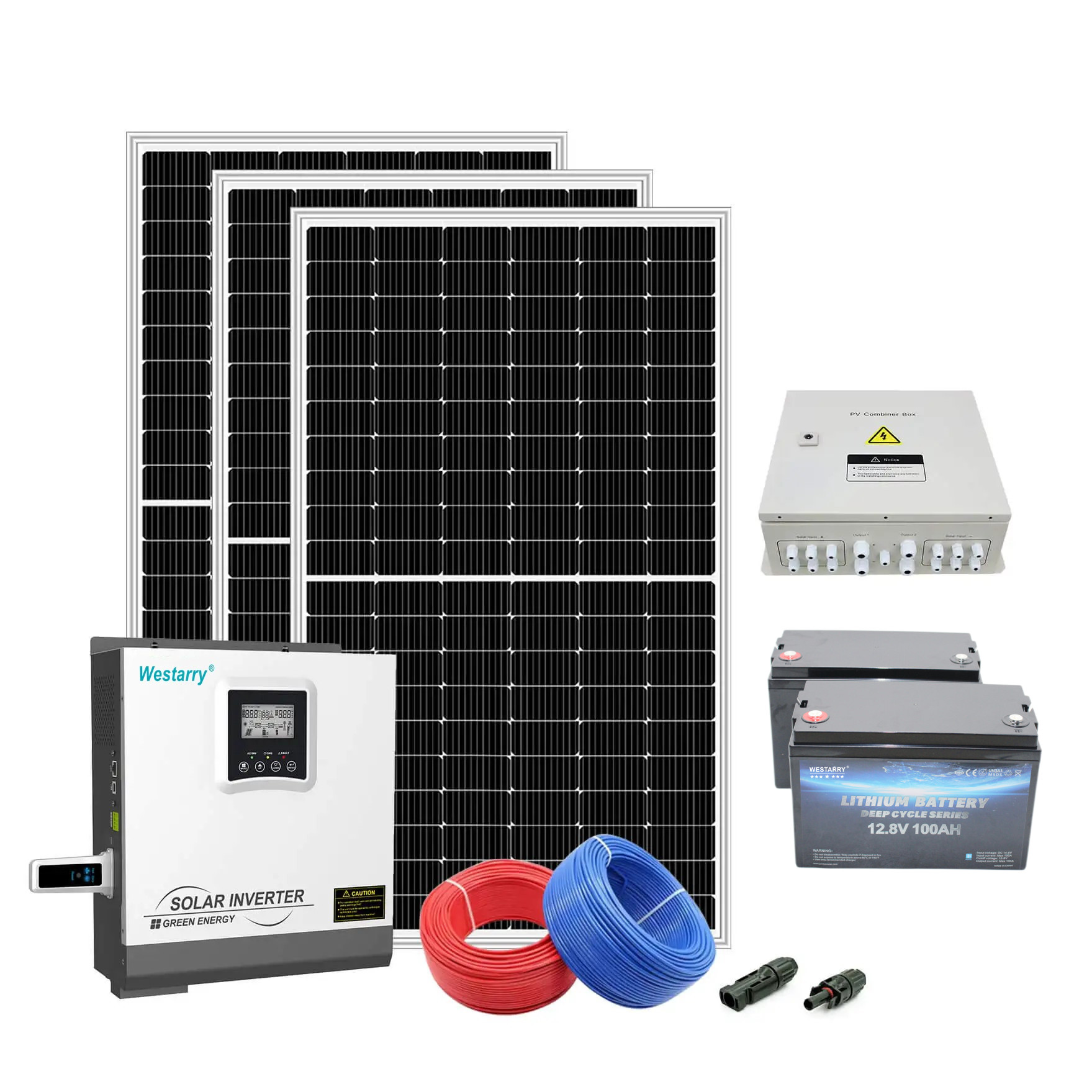

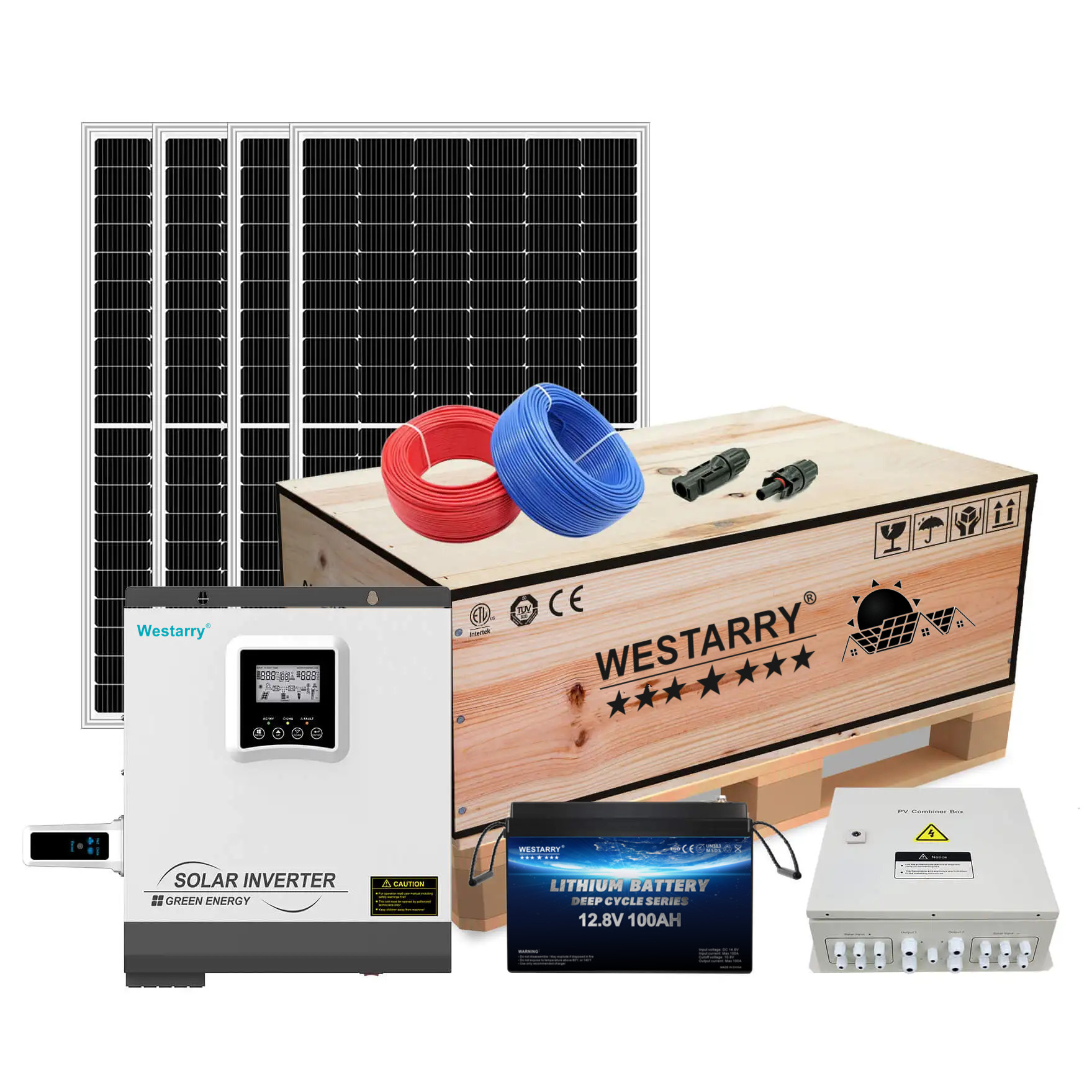

Westarry Solar Energy System Home Solar Power Systems 3KW Off Grid Solar Panel System For Home Energy Storge

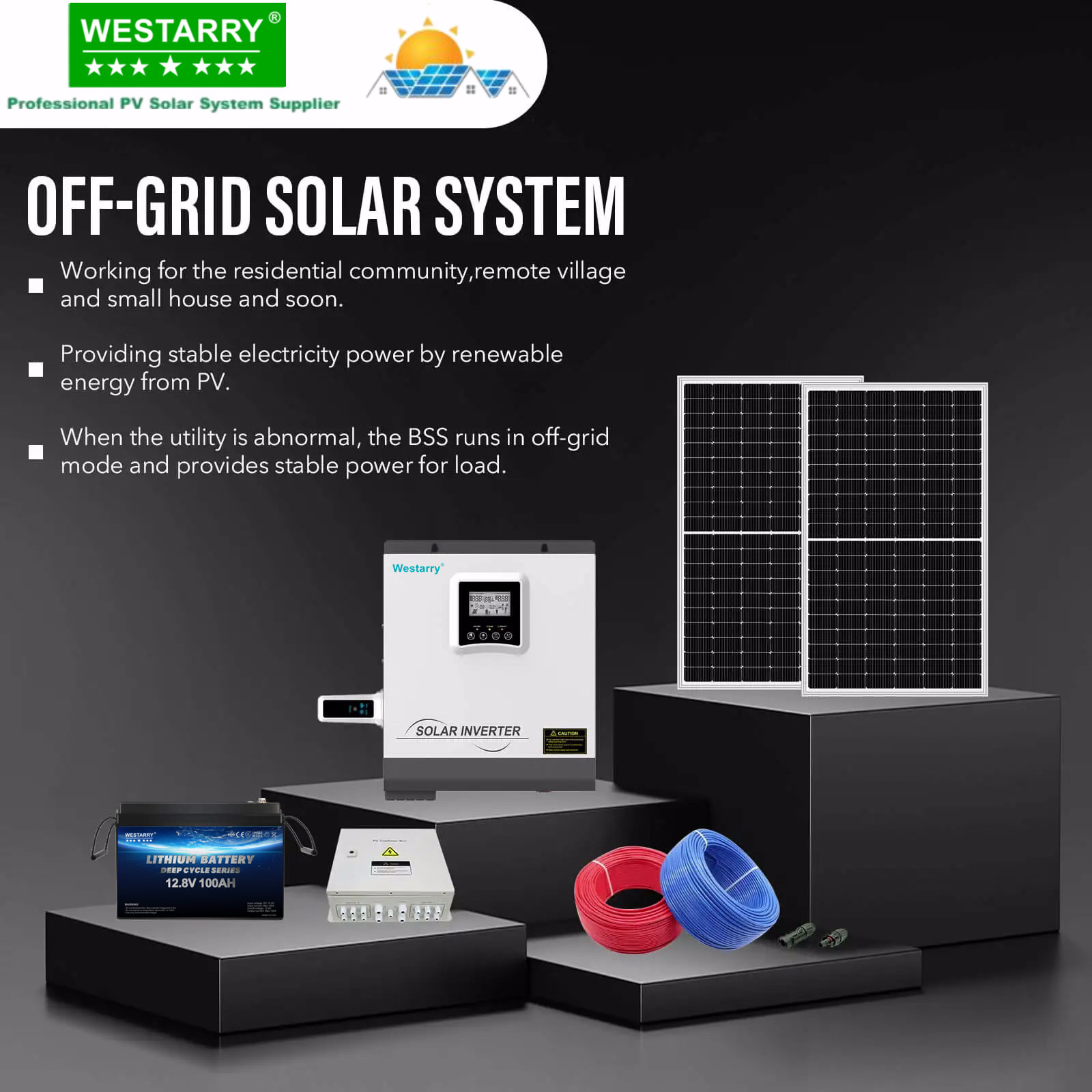

**Working for the residential community,remote village and small house and soon.
**Providing stable electricity power by renewable energy from PV.
**When the utility is abnormal, the BSS runs in off-grid mode and provides sta ble power for load.
Tags：
No. | Product | Spec Description | Qty |

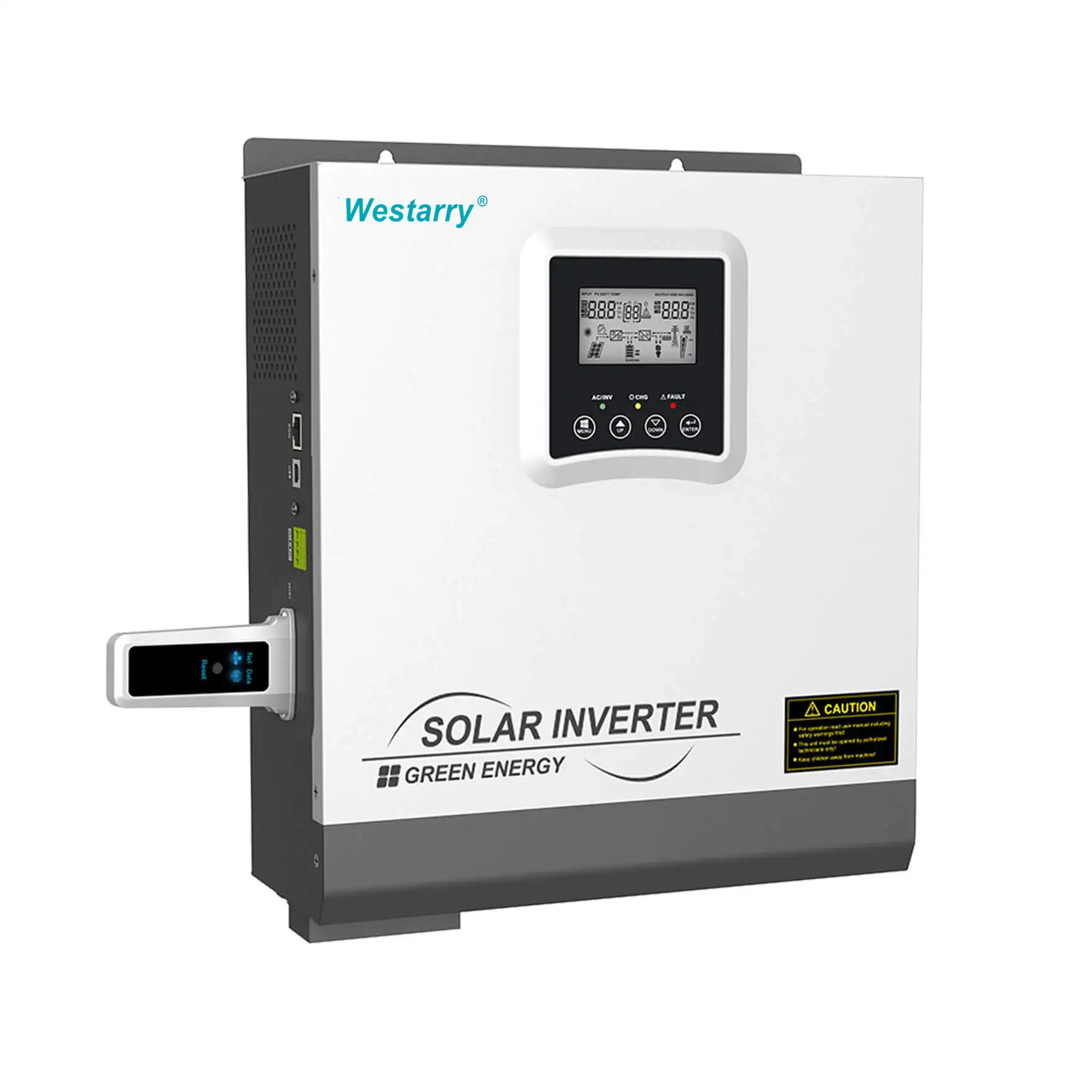

1 | PV18-3024 VPM Inverter | Default Battery System Voltage:48VDC Rated Power: 3000VA 3000W Voltage: 230VAC Maximum PV Array Open Circuit Voltage:150VDC Maximum Solar Charge Current: 60A Package Dimensions (W*H*D)(mm): 485*393*251 Gross Weight(kg): 7.4 | 1 |
2 | Mono Perc Solar Panel | Power:450W Cell range: JA solar cell 6*20(182*91mm) Size：1909*1134*35mm Pallet size：1910*1150*1300mm Material: 3.2mm | 7 |
3 | WT-LFP-24200 Lithium battery pack (25.6V200AH) | 1.Type:WT-LFP-24200(25.6V200AH) 2.charging voltage: 29.2V 3.Working Voltage: 21V-29.2V 4.Charging Current: MAX 0.5C 5.CA:MAX 200A 6.Norminal Power: 5120w 7.Weight: KG 8.Size: 532*207*215mm L*W*H(H) 9.Temperatue: (-30℃～75℃) | 1 |
4 | AC circuit breaker | 20a | 2 |
5 | DC circuit breaker | 125A | 1 |

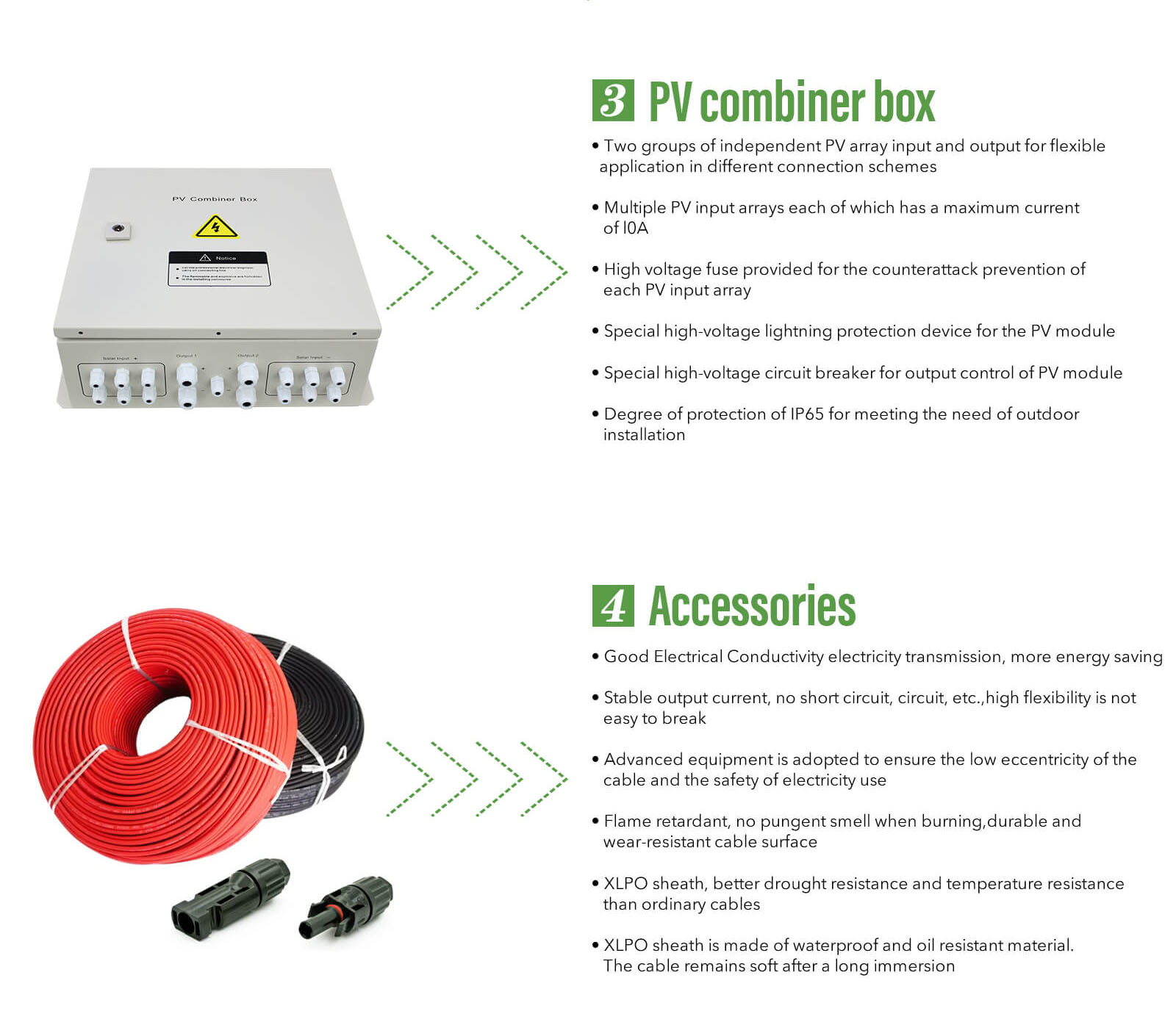

6 | Combine box | 2 INPUT+2 OUT PUT | 1 |
| 7 | Solar panel connecter | MC4 | 1 Set |
| 8 | Roof mount accessories | 1 Set |
