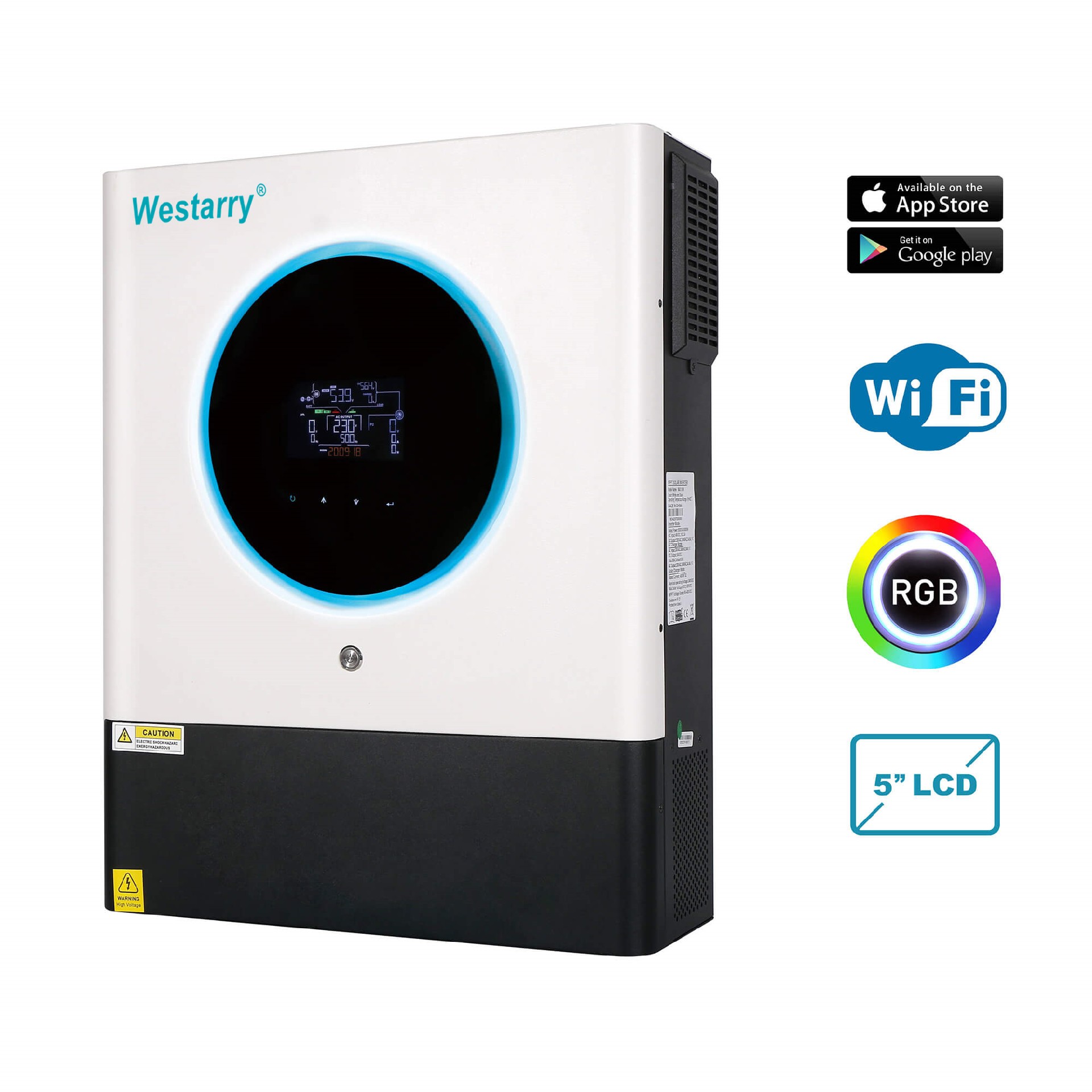

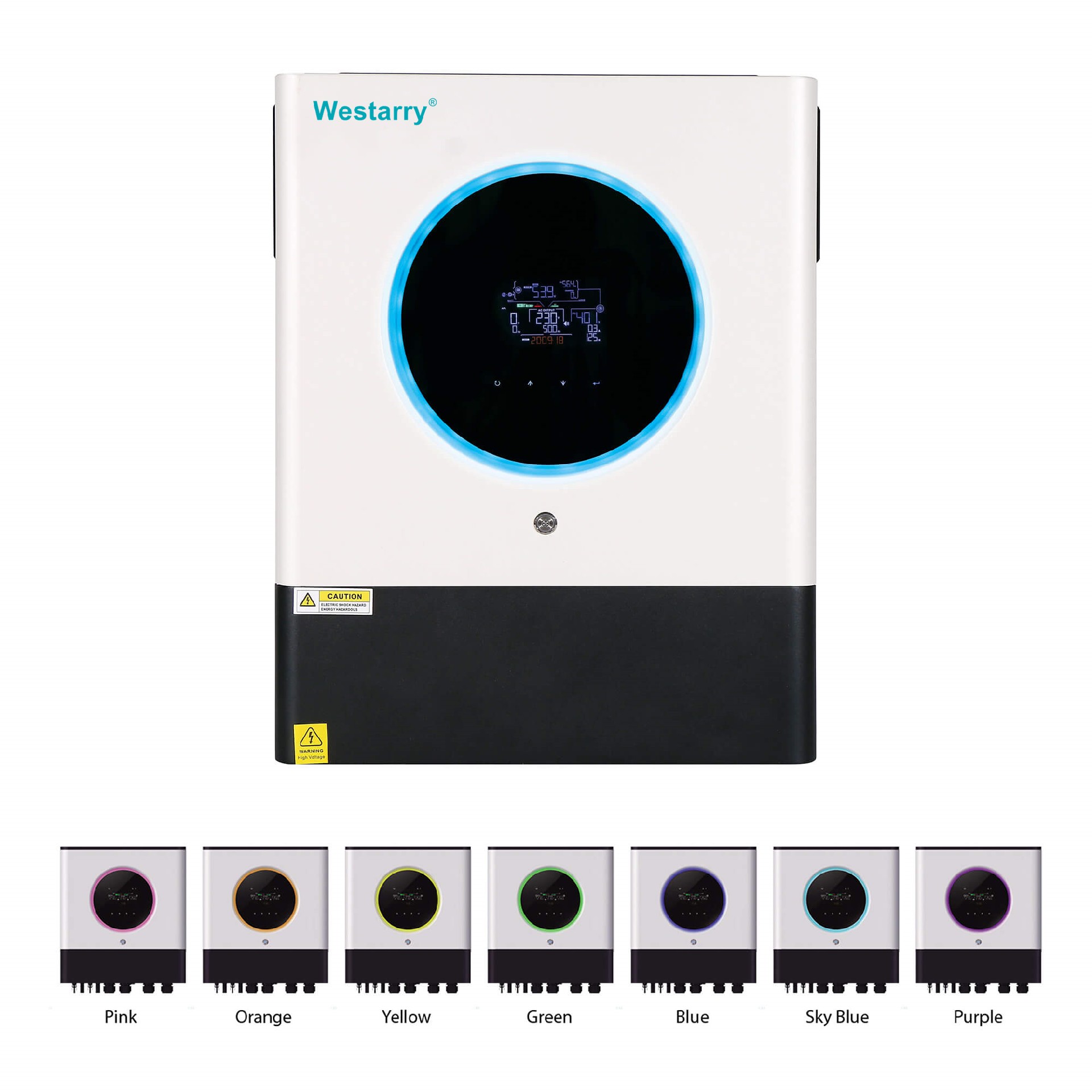

●Customizable status LED bar with RGB lights
●Touchable button with large 5" colored LCD
●Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
●Supports USB On-the Go function
●Data log events stored in the inverter
●Reserved communication port for BMS (RS485, CAN-BUS or RS232)
●Replaceable fan design for ease of maintenance
●Battery independent design
●Configurable AC/PV output usage timer and prioritization
●Selectable high power charging current
●Compatible to Utility Mains or generator input
●Built-in anti-dust kit
●Built-in DC output for DC fan,LED bulb,router and soon

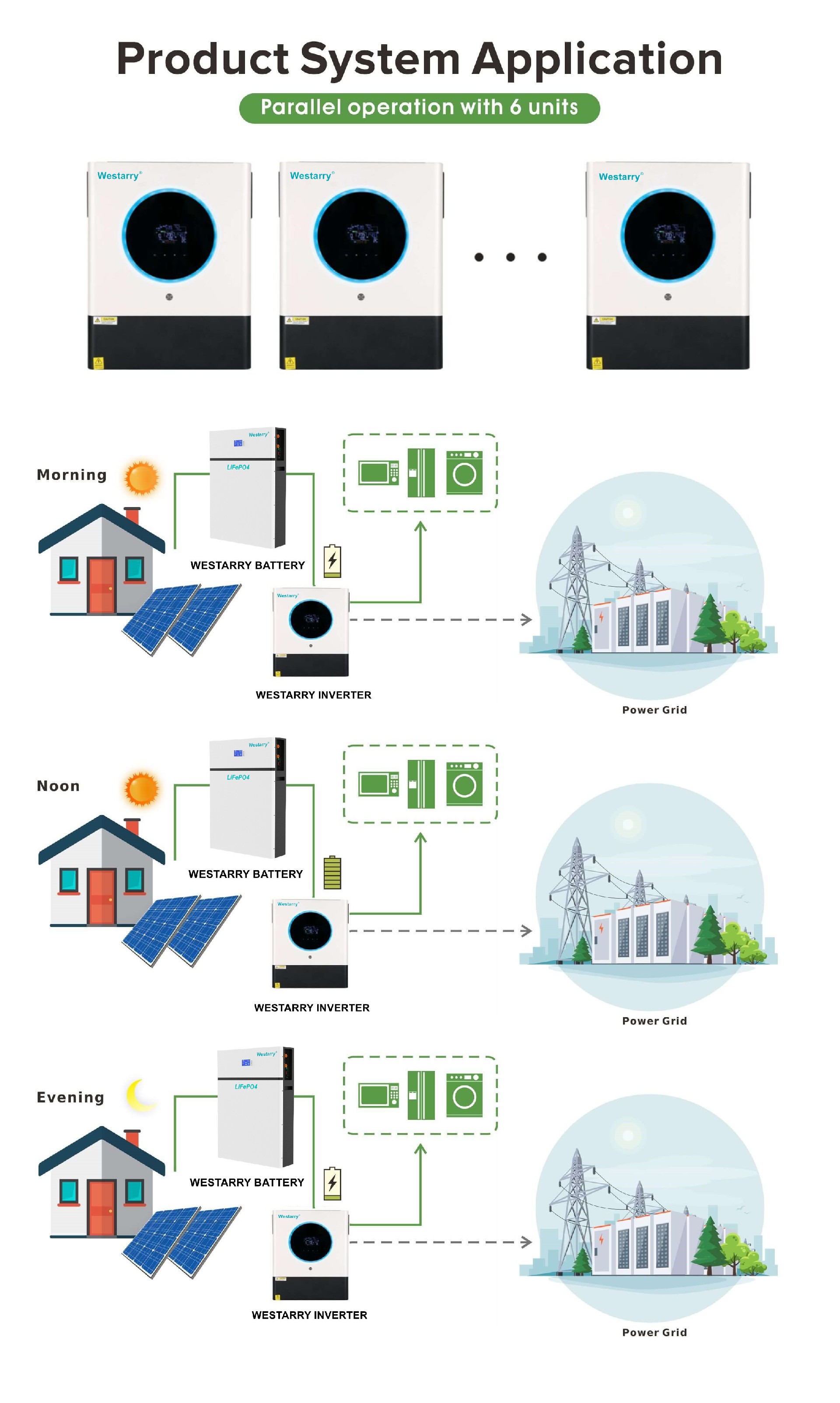

●Parallel operation with 6 units
Tags：
MODEL | MAX II 8000 |
Rated Power | 8000VA/8000W |
Parallel Capability | YES. 6 units |
INPUT | |
Voltage | 230 VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
OUTPUT | |
AC Voltage Regulation (Batt. Mode) | 230VAC+5% |
Surge Power | 16000VA |
Efficiency (Peak) | 93% |
Transfer Time | 15 ms (For Personal Computers); 20 ms (For Home Appliances) |
Waveform | Pure sine wave |
No Load Power Consumption | <70W |
DC Voltage | 12 VDC+5%, 100W |
BATTERY | |
Battery Voltage | 48 VDC |
Floating Charge Voltage | 54 VDC |
Overcharge Protection | 66 VDC |
SOLAR CHARGER & AC CHARGER | |
Solar Charger Type | MPPT |
Maximum PV Array Power | 8000W (4000W x 2) |
MPPT Range @ Operating Voltage | 90 ~ 450 VDC |
Maximum PV Array Open Circuit Voltage | 500 VDC |
Maxmum Solar Charge Current | 150A |
Maximum AC Charge Current | 120A |
Maximum Charge Current | 150A |
PHYSICAL | |
Dimension, D x W x H (mm) | 158.4x502.5x530.8 |
Net Weight (kgs) | 20 |

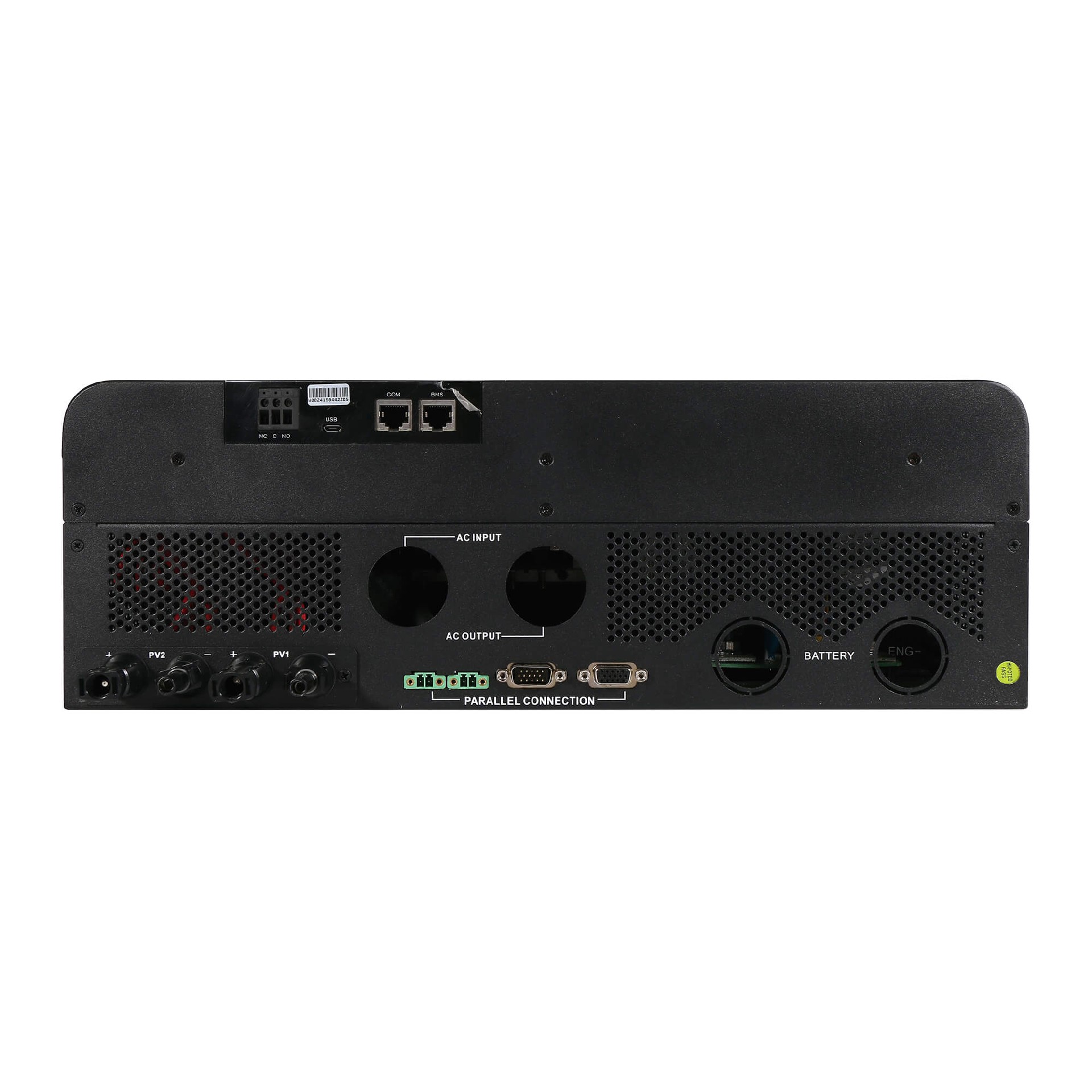

Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
OPERATING ENVIRONMENT | |
Humidity | 5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature | -10℃ to 50℃ |
Storage Temperature | -15℃ to 60℃ |
STANDARD | |
Compliance Safety | CE |
