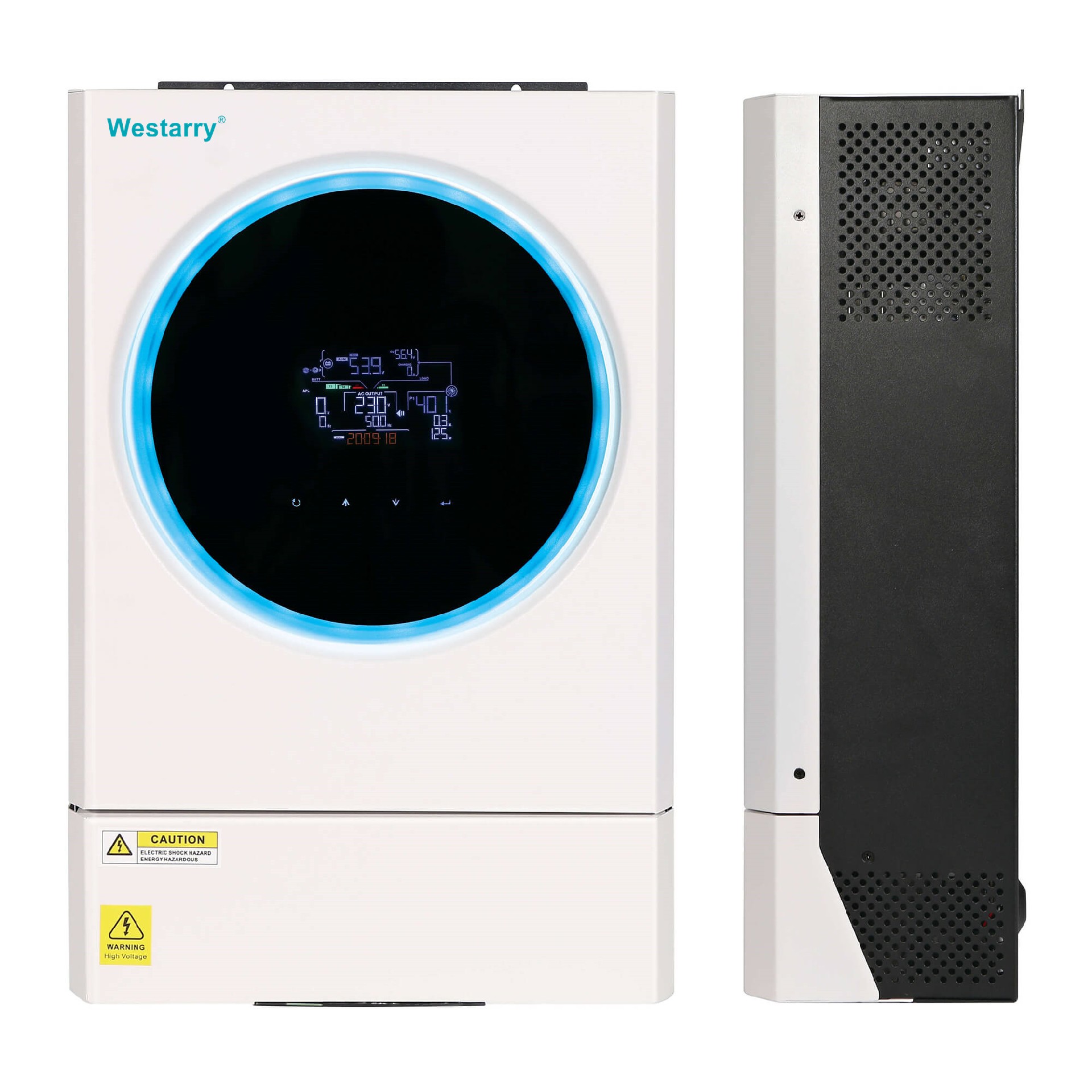

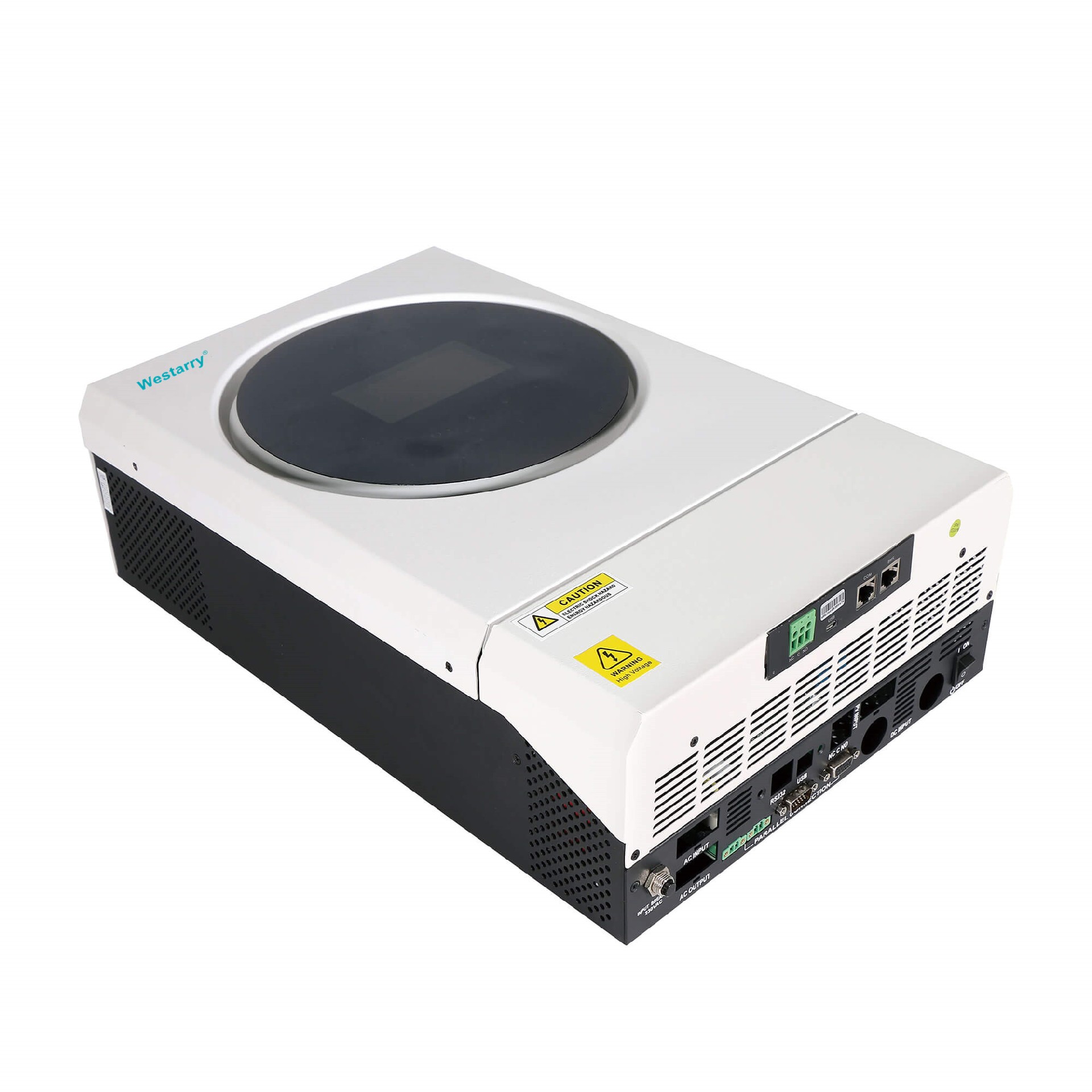

●Pure sine wave MPPT solar inverter
●Customizable status LED ring with RGB lights
●Touchable button with 4. 3" colored LCD
●Wide DC input range
●Supports USB On-the-GO function
●Data log events stored in the inverter
●Built-in Wi-Fi for mobile monitoring(App is available)
●Reserved communication port for BMS
●Battery independent function
●Parallel operation with up to 9 units
Tags：
MODEL | MKS IV 3600-48 | MKS IV 5600-48 |
Rated Power | 3600VA/3600W | 5600VA/5600 |
INPUT | ||
Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | |
Frequency Range | 55 Hz/60 Hz (Auto sens | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230 VAC +5% | |
Overload capacity | 5s@2150% load; 10s@110%**150% load; 100ms @ >200% load | |
Efficiency (Peak) | 93% | |
Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) | |
Waveform | Pure sine wave | |
BATTERY | ||
Battery Voltage | 48 VDC | 48 VDC |
| Floating Charge Voltage | 54 VDC | 54 VDC |
Overcharge Protection | 66 VDC | 66 VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Solar Charger Type | MPPT | MPPT |
| Maximum PV Array Power | 5000 W | 6000 W |
| MPPT Range @ Operating Voltage | 120-430 VDC | |
Maximum PV Array Open Circuit Voltage | 450 VDC | |
Maxmum Solar Charge Curren | 100A | 120A |
Maximum AC Charge Current | 100A | 120A |
PHYSICAL | ||
Dimension, D x W x H (mm) | 140x295x468 | |
Net Weight (kgs) | 11.0 | 12.0 |

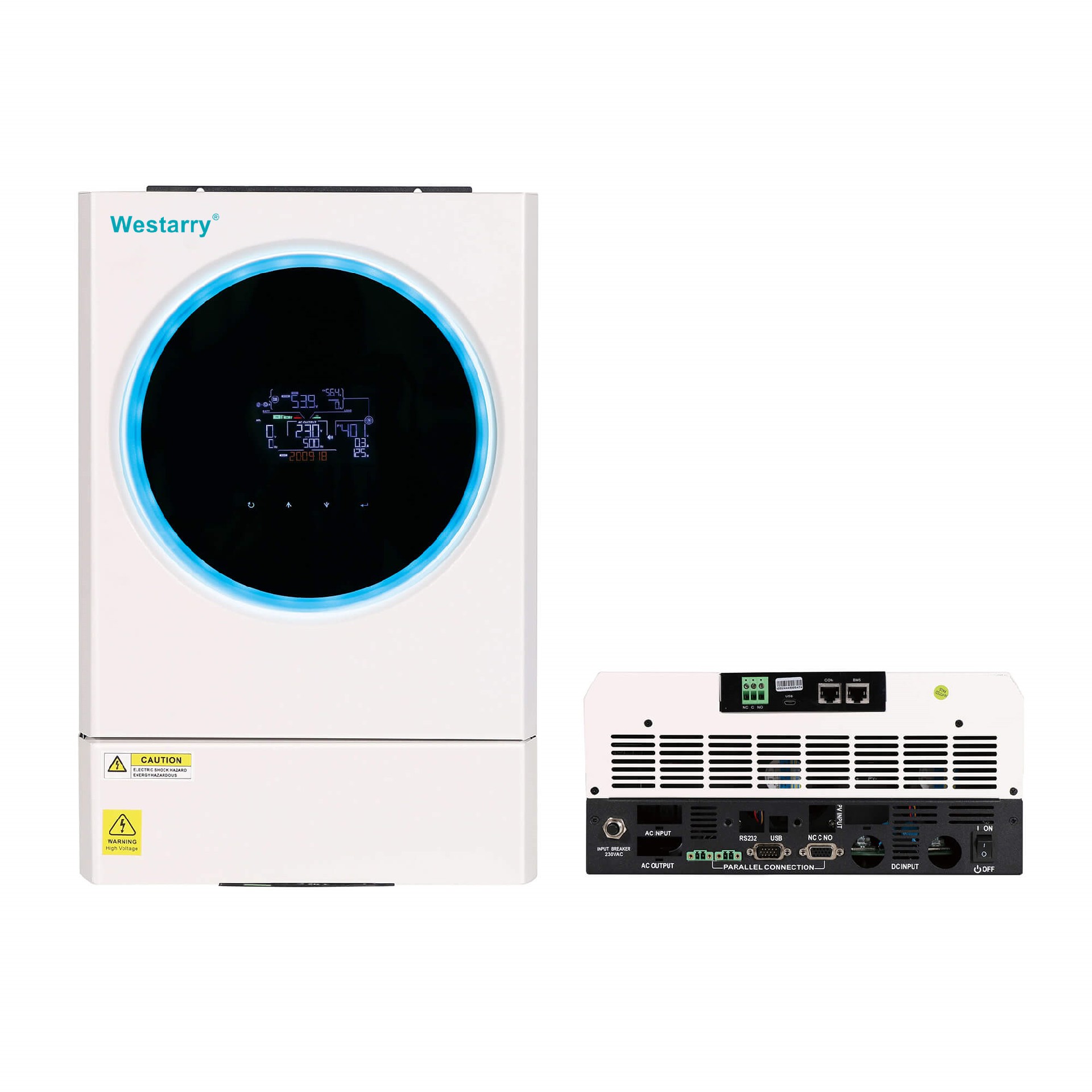

Communication Interface | USB/RS232/RS485/Wifi/Dry-contact | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature | -10℃ to 50℃ |
|
Storage Temperature | -15℃ to 60℃ |
|
