• Pure sine wave output
• Self-consumption and deed in to the grid

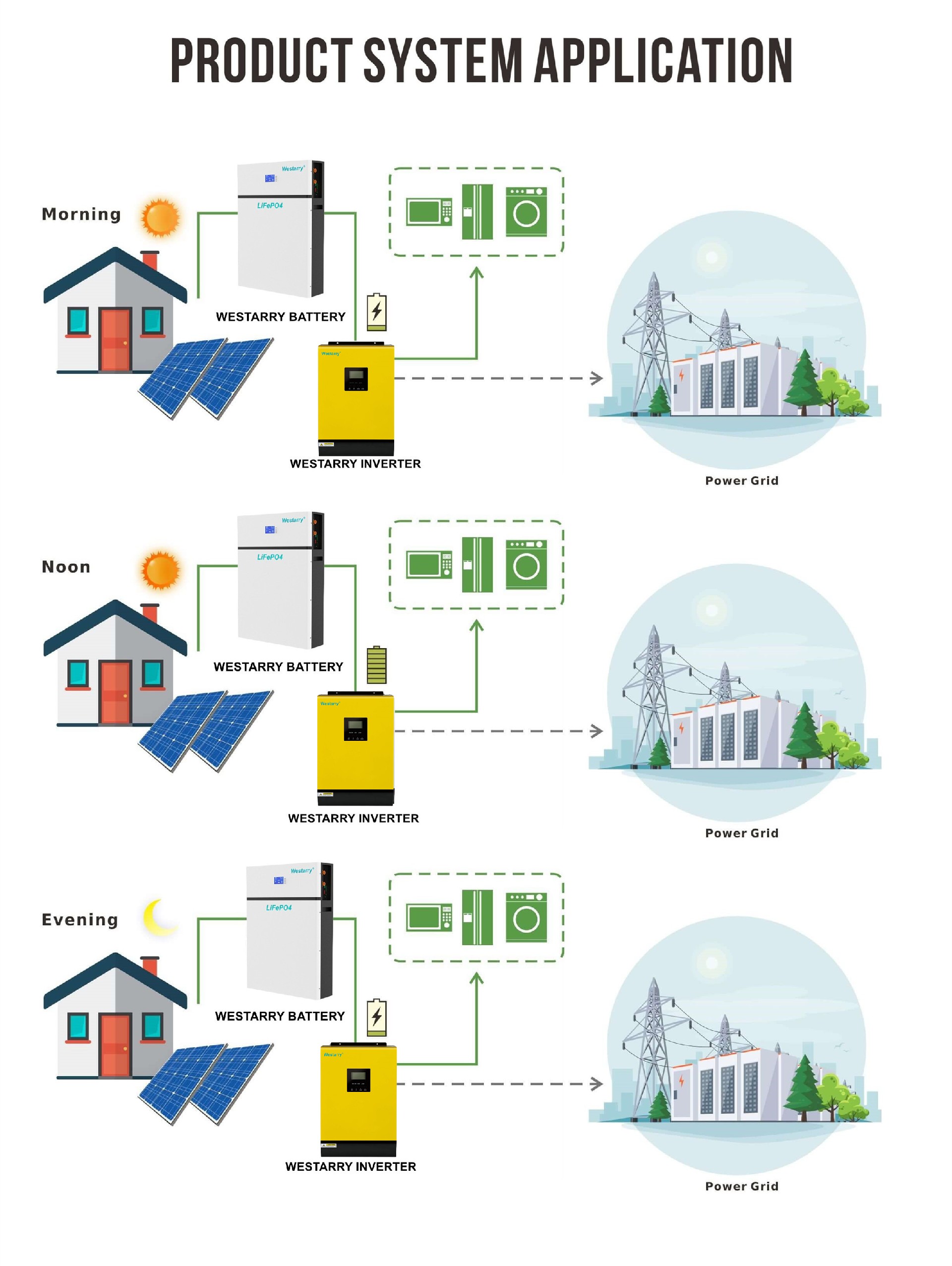

• Programmable supply priority for PV, Battery or Grid
• User-adjustable battery charging current suits different types of batteries
• Programmable multiple operation modes: Grid-tie,Off-grid and grid-tie with backup
• Built-in timer for various mode of on/off operation
• Multiple communication for USB.RS232,Modbus and SNMP
• Monitoring software for rel-time status display and control
• Parallel operation up to 6 units for 10KW
• Pure sine wave output
• Self-consumption and deed in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable battery charging current suits different types of batteries
• Programmable multiple operation modes: Grid-tie,Off-grid and grid-tie with backup
• Built-in timer for various mode of on/off operation
• Multiple communication for USB.RS232,Modbus and SNMP
• Monitoring software for rel-time status display and control
• Parallel operation up to 6 units for 10KW
Tags：
Technical Specifications:
Model | WTX5032 |
PHASE | 1-phase in/1 phase out |
Max. PV INPUT POWER | 5000W |
Rated Output Power | 5000W |
Maximum Charging Power | 4800W |
GRID TIE OPERATION | |
PV INPUT (DC) | |
Nominal DC Voltage/Max. DC Voltage | 720 VDC/900 VDC |
Start-up Voltage/lnitial Feeding Voltage | 225 VDC/250 VDC |
MPP Voltage Range | 250 VDC-850 VDC |
Number of MPP Trackers | 2/2x10A |
Maximum Input Current | 2/2x10A |
GRID OUTPUT (AC) | |
Nominal Output Voltage | 208/220/230/240VAC |
Output Voltage Range | 184-265 VAC* |
| Nominal Output Current | 21A |
OFF GRID OPERATION | |
AC INPUT | |
AC start-up Voltage | 120-140 VAC/180 VAC |
Auto Restart Voltage | 120-140 VAC/180 VAC |
Acceptable Input Voltage Range | 170-280 VAC |
| Max. AC Input Current | 21A |
PV INPUT (DC) | |
Max. DC Voltage | 900 VDC |
MPP Voltage Range | 250 VDC-850 VDC |
Number of MPPTrackers/Max. Input Current | 2/2x10A |
BATTERY Mode Output (AC) | |
Nominal Output Voltage | 202/208/220/230/240 VAC |
Output Waveform | Pure Sine Wave |
Efficiency (DC to AC) | 93% |
| HYBRID OPER/EON | |
PV INPUT (DC) | |
Nominal DC Voltage/Max. DC Voltage | 720 VDC/900 VDC |
Start-up Voltage/lnitial Feeding Voltage | 225 VDC/ 250 VDC |
MPP Voltage Range | 250 VDC- 850 VDC |
Number of MPP Trackers/Max. Input Current | 2/2x10A |
GRID OUTOUT (AC) | |
Nominal Output Voltage | 202/208/220/230/240 VAC |
| Output Voltage Range | 184-264.5 VAC* |
Nominal Output Current | 21A |
AC INPUT | |
AC Start-up Voltage/Auto Restart Voltage | 120-140 VAC/180 VAC |
| Acceptable Input Voltage Range | 170-280 VAC |
| Max. AC Input Current | 30A |
BATTERY MODE OUTPUT (AC) | |
Nominal Output Voltage | 202/208/220/230/240 VAC |
Efficiency (DC to AC) | 93% |
| GENERAL | |
PHYSICAL | |
Dimension, DxWxH (mm) | 204.2 x 460x 600 |
Net weight (kgs) | 29 |
ENVIRONMENT | |
Humidity | 0 -90%RH |
Operating Temperature | -10 to 55 ° C |
Altitude | 0-1000 m** |
